Brand: KC

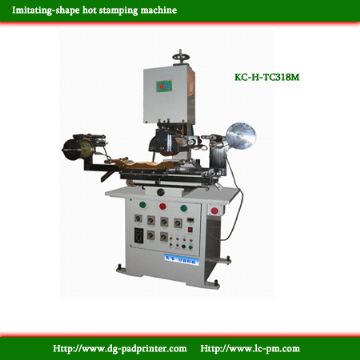

Model: KC-H-TC318M
Min. Order: 1
heat transfer machine
hot stamping machine
Heat transfer
Specifications︰
& Max. Printing Area (Flat) :170 x 300 mm ;
& Max Length of Rubber Roller :170 mm ;
& Work Table Size :209 x 300 mm ;
& Max. Pressure : 200 kg;
& Max. Head Stroke : 75 mm;
& Max. Table Stroke : 300 mm ;
& Max. Opening (Flat) :280 mm;
& Max. Opening (Cylindrical): 200 mm ;
& Voltage Supply: 220 V ;
& Heater Capacity: 1800 W ;
& Foil Controller Motor Drive ;
& Thermo Controller: 0 - 400oC ;
& Net Weight : 251 Kg ;
& Gross Weight : 331 Kg;
& Dimension (L x W x H) :1050 x 530 x 1650mm.
Advantages︰
1. Microprocessor control ;
2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Five-digit counter available;
4. Worktable slight adjustment ensure precision stamping;
5. Automatic foil feeding and collecting;
6. Safe protection device installed;
7. The stamping head height adjustable;
8. Shuttle stable shift ensure stamping cylindrical workpiece;
9. Stamping flat workpiece while uninstall the shuttle;
