Brand: KC
Model: KC-SP-6080PV
Min. Order: 1
screen printer
screen prinitng machine
screen print
Specifications︰

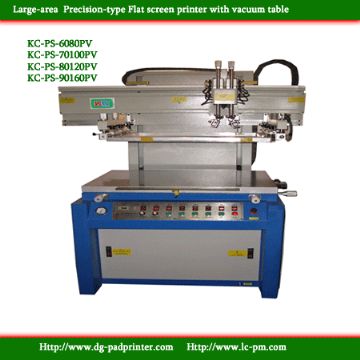

KC-PS-6080PV
1. Printing high：50mm;
2. Air ：45Liter/Min;
3. Working tavble dimension:700×900mm;
4. Max Frame dimension: 950×1200mm;
5 Max printing area：600×800mm;
6 Max printing speed：800PCS/hr ;
7. Max Stroke of up-and-down frame:200mm;
8. Max stroke of Squeegee:800mm;
9. Squeegee motor wattage: 200W.
10. Table Precision: +-0.03mm.

KC-PS-70100PV
1. Printing high：50mm;
2. Air ：45Liter/Min;
3. Working table dimension:800×1200mm;
4. Max Frame dimension: 950×1350mm;
5 Max printing area：700×1100mm;
6 Max printing speed：700PCS/hr ;
7. Max Stroke of up-and-down frame:200mm;
8. Max stroke od Squeegee:1000mm;
9. Squeegee motor wattage: 200W.
10. Table Precision: +-0.03mm.

KC-PS-80120PV
1. Printing high：50mm;
2. Air ：55Liter/Min;
3. Working tavble dimension:900×1300mm;
4. Max Frame dimension: 1050×1450mm;
5 Max printing area：800×1200mm;
6 Max printing speed：700PCS/hr ;
7. Max Stroke of up-and-down frame:200mm;
8. Max stroke of Squeegee:1200mm;
9. Squeegee motor wattage: 200W.
10. Table Precision: +-0.03mm.

KC-PS-90160PV
1. Printing high：50mm;
2. Air ：55Liter/Min;
3. Working tavble dimension:1000×1700mm;
4. Max Frame dimension: 1150×1850mm;
5 Max printing area：900×1600mm;
6 Max printing speed：600PCS/hr ;
7. Max Stroke of up-and-down frame:200mm;
8. Max stroke od Squeegee:1600mm;
9. Squeegee motor wattage: 200W.
10. Table Precision: +-0.03mm.
Advantages︰
1.Controled by microcomputer , Famous Electronics element assembly.
2.Rise from up-down of screen frame make running stabilization.
3.Flat printing function Automaticoil scrabbing, oil return and lifting table ;
4.Adujustability of Printing stroke and speeds ;
5.Self-poise scraper to balance printing pressure;
6.Adjustable table and netting easel (fluctuation & both sides) ;
7.1.5mm diameter small hole evenly distributed on working table , High precision stainless steel table with accurate grinding . Micro-adjustment screw design -High precision and easy & quick adjustability
8. With vacuum working table to fit for thin and soft products. Coin Aluminium alloy beam, singkang and blading driven by famous brand motor, Make printing process stationary;
9. High precision Line-rail to controll Squeegee move from right to left and dreiven by Frequency conversion motor;
10. High Precision round Guiding-axis to controll frame from up to down.
11. Safeguard device design to protect the operator ;
12. Voluntarily swirl-type vacuum pump make object absorbed onto table Tightness;
13. Uniqueness Leaving-screen device design make printing pressure balance and stablization, avioding plate-adsorb and screen block.
