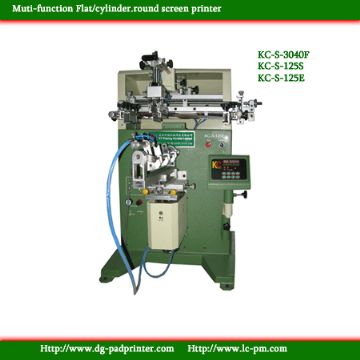

Cylinder Screen Printer

Cylinder Screen Printer

Cylinder Screen Printer

Detailed Selling Lead Description
Brand: KC
Model: KC-S-125S
Min. Order: 1
Pad printer
pad printing machine
Tempo printer
Specifications︰
1. The max printing thickness: 200 MM
2. Air consumption: 75 Lit/Min
3. Outline size: 1080×850×1280MM
4. The max printing area : 200×250MM
5. Dimension of working table: 250mm×300mm
6. Max printing speed: 1300Pc/Hr;
7. Max frame dimension: 410×350mm.
8. Stroke of Squeegee: 250mm.
9. Stroke of Table cylinder: 60mm.
10.Max Diameter of Products: 75mm
11.Max length of Products: 300mm.
Advantages︰
1.Fully automatic control by microcomputer & easy handling
2.Four figures automatic counter
3.Round printing function (taper section)
4.Automaticoil scrabbing, oil return and lifting table
5.Adujustability of routs and speeds
6.Self-poise scraper to balance printing pressure
7.Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
8.High precision and easy & quick adjustability
