Brand: KC

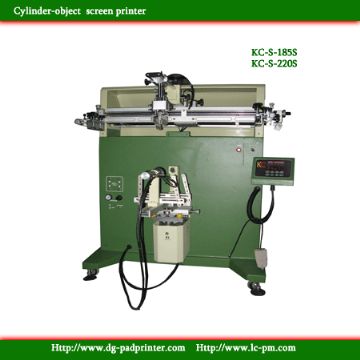

Model: KC-S-220S
Min. Order: 1
screen printer
screen prinitng machine
screen print
Specifications︰
1.Max. printing height: 320mm;
2.Max. Printing diameter:;whole circle: 220mm;.arc: 680mm;
3.Max. printing speed: 1000pcs/hr;
4. Air consume: 80Litre/min(6bar).
5.Max Screen Frame: 850×450mm;
6.Stroke up-and-down of working table: 150mm;
7.Stroke up-and-down of Squeegee: 50mm;
8.Max length of printing objects: 400mm;
9. Range back-forth of Squeegee: 250mm;
10. Diameter of Fixture axis: 18mm;
11. Range back-forth of screen frame: 180mm.
Advantages︰
1 Microprocessor control ;
2 5-digit auto counter built in;
3 Auto ink squeegeeing and flooding ;
4 Auto balanced squeegee to ensure equalized printing pressure;
5 Worktable can be adjusted up/down and left/right ;
6 Printing stroke and speed are adjustable ;
7 Safety guard is equipped to meet CE standard .
