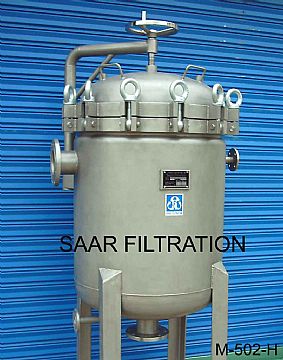

Model: M-502-A06-G100-
MORE-BAG Filter Housing
MORE-BAG...Full featured design and mid-priced Filter Vessels for Most Applications

SIDE-ENTRY Filter Vessles for Most Applications
The Vessel Side in Bottom out is a full-featured investment-cast filter. A glass bead, blasted finish that makes cleaning quick & easy and a cover that can be easily adapted to different opening directions are among MORE-BAG many value added features.

A MORE-BAG vessel is a full-featured investment-cast filter vessel with five-year warranty. A bead, not sand, blasted finish that makes cleaning complete and a cover that can be easily adapted to different opening directions are among MORE-BAG Housing’s many value added features. With MORE-BAG Housing you can take advantage of all of the benefits of stainless steel at a carbon steel price. Even if your process doesn’t require stainless steel now, you can take advantage of stainless steel’s superior corrosion resistance and consistency of performance.

Value Added Features
· Side inlet piping connection
· Sizes for #01 single or #02 double-length filter bags
· Unique two-weld design
· Buna N seals standard
· Electro polishing stainless steel basket
· 4” DIN or HG or ANSI or JIS flanged connections (for 4 bags)
· Maximum operating pressure of 6 bar (can be arrived 10 bar).
· Maximum operating temperature 120°C
· Evacuation cover with swing bolts
· Fixed mounting legs
· Extended five-year warranty
· Type 304, 316 stainless steel construction

Type of open and close:
davit arm manual

Available Options
1. Electro polishing
2. Mechanical polishing

It’s possible to delivery the heating jacket vessel and the Operating data up to 10 (bar).
