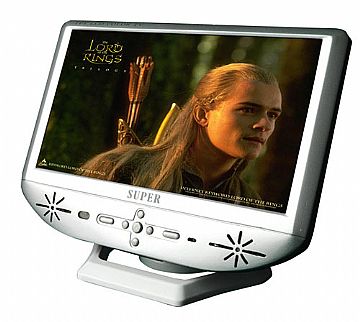

Pl8508 8.5''Stand-Alone Tft-Lcd Tv

Pl8508 8.5''Stand-Alone Tft-Lcd Tv

Pl8508 8.5''Stand-Alone Tft-Lcd Tv

Detailed Selling Lead Description
features: new's 8.5inch TFT LCD panel ,with wide view angle Multi-TV system choice for the customer,such as PAL/NTSC/SECAM Full band PLL tv tuner,preset channels up to 250 CH Full function remote control,Chinese &English operating menu(another language is optional ) Inimitable MMI input &output interface , easy to connet VCD/DVD&TV GAME Support Multi picture mode choice: 16:9/4:3、Horizontal or Vertical picture reversal TIMER for auto turn on and turn off&automatic screensaver built-in speakers SPECIFICA-TION : Item Data Power Consumption DC 12V 700mA Screen Size 8.5inch 16:9 TV system 1、PAL -D/K 、I 、B/G 2、NTSC-M 3、NTSC-M + PAL-M/N 4、PAL + SECAM-D/K、I、B/G RF input range 47--870MHz VIDEO input 1Vp-p CVBS AUDIO input/output 2V p-p speaker 1W(max) Resolution 480*234 pixel Active display area 187.2 (W)* 105.3(H)mm Pixel pitch 0.130 (W)*0.450 (H)mm Viewing angle range 115 H/ 130V deg Brightness 400cd/m2 Contrast ratio 300 :1 Response time 12ms Operating temperature 0---60centigrade Dimension 216*157*26(mm) Package dimension 33*220*75mm Weight 720g " accessories": 1、 PL8508 2、REMOTE CONTROL 3、AC/DC adapter 4、motor vehicle power adapter 5、MMI AV input CABLE 6、antenna transfer-connected cable
