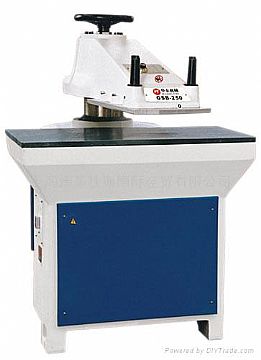

Hydraulic Sway Arm Material Cutting Maching

Hydraulic Sway Arm Material Cutting Maching

Hydraulic Sway Arm Material Cutting Maching

Detailed Selling Lead Description
specifications
Main technical data:
Model GSB-2C/20
Cutting Force 20 Tons
Sway Arm Width 350X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 65-150mm
Table Area 1000X500mm
Electric Supply Voltage 3x415/400/380 /220V, 50/60 Hz
Motor Power 1.5kw
Packing Size(LXWXH) 1200X1200X1700mm
Weight 1200Kg
Hydraulic oil (46#) 50 Liters



Advantages
Features:
1) Technology from England Combination Shoe-Making Machine Company Ltd applied;
2) Safe, two-hand trip operation ;
3) Used to scissor up plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials;
4) Equipped with lubricating system to lessen wear and prolong service life;
5) Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality shoes;
6) People can adjust height of sway arm from table by simple handle, convenient, stable;
