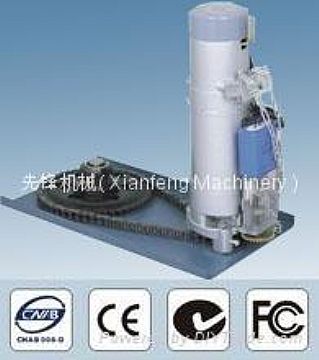

Model: JM500...
For operation of rolling shutter of commercial and industrial
usage.Door weight up to 1000 kg.
1,Overworking for a short time.
2,Overheat protection.
3,Limit switch unit enables precise adjustment of door in up and down
positions.
4,Release chain in case of power failure.
5,Built-in control panel (KJ500C/KJ600C/JM500)
6Control panel are available to infrared photocells,alarm lamp,and
remote control.
7,Safety device for preventing the vehicle or people from damage in
case of roller chain is break off.
Technical data
Model: JM500/JM500A KJ500/KJ500CKJ600/KJ600CKJ1000
Power supply220V~240V 220V~240V(110V is available) 220V~240V3P-380V
Max.lifting capacity 500kg 500kg 600kg 1000kg
Roller diameter 127mm 127mm 127mm 165mm
Reduction ration 210:1 210:1 252:1312:1
Weight12kg/10kg 12kg/14kg 12kg/14kg 21kg
Control type:Button switch/ControllerController/Button switchController/Button switchController
