Brand: ADEERI

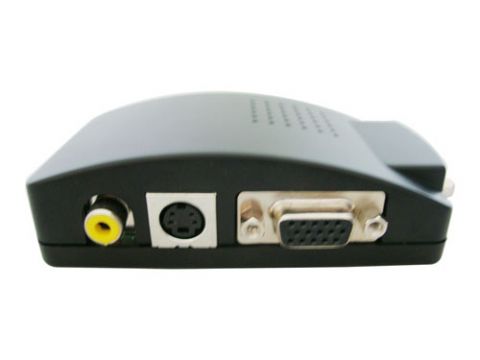

Model: ADR-220
Price: USD 25 / PC
Min. Order: 100PCS PC
av to vga
rca to vga
svideo to vga
Introduction

The ADR-220 video converter can convert the source signals of CVBS,VIDEO and S-VIDEO into VGA signal.With adoption of advanced video straight-through technonlogy,the source signals of BNC,AV and S-VIDEO can be converted into VGA signal without any data loss.What’s more,the parameters of the program source such as brightness and contrast are adjustable.It supports plug-and-play,no driver program installation is needed.


Functions

-Supported conversion of video signal format:from CVBS or S-VIDEO signal into frequency multiplication processesd high-resolution VGA signal.
-Multiple input signal formats are supported:CVBS,S-VIDEO,and VGA.Also automatic identifyication of the three color systems i.e.PAL,NTSC and SECAM.
-Supported output resolution: 640x480@60/75Hz, 800X600@60/75Hz,1024X768@60/75Hz, 1280X1024@60Hz, 1440X900@60Hz, 1680X1050@60Hz, 1920X1080@60Hz, 1920X1200@60Hz
-Adjustable brightness,contrast,color saturation and hue.
-Image freeze
-Current working status can be saved on accidental power-off
-Caption prompts function for all operatrion and status.
-Standard VGA output works with all standard monitor
-Industry-level design(size: 105X65X27mm)
-Power:DC5V/2A supply
