Brand: GENEVISION
Model: mJ-170
Price: CNY 920 / 台
Min. Order: 10 台

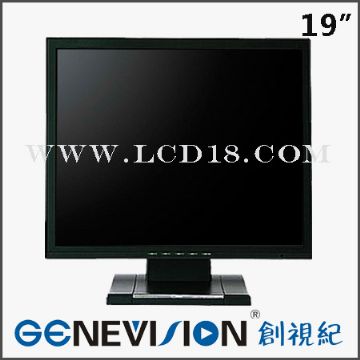

lcd cctv monitorProduct Name:19 inch LCD CCTV Monitor
Brands of LCD screen for Samsung、LG/Philip、 AU. A Class 335 standard, full new and factory original packing screen;
Front Panel Control: Channel Switch/ Menu/ Volume/ Power Switch;
OSD Menu: Contrast, Brightness, Auto-Configure, Clock, Phase, H & V-Position, Language selection;
Image bright, colorful.
Technique Parameter for LCD Panel:
Display size:19"TFT LCD
Aspect Ratio4:3
Response Time:8ms
Max. Resolution:1280*1024 RGB
Contrast Ratio:400:1
Brightness (cd/m2):2000 cd/m2
Display Color (Max):86.2M
Viewing Angle:85°/85°/85°/85°
Color system:NTSC/ PAL、SECAM(Optional)
Stereo system:Y
BNC Terminal: X 2
VGA Terminal:X 1
S-Video Terminal:X 1
Audio Terminal:X 2
Valtage/Frequency:AC Input 90~264V,50-60Hz DC Output 12V 3A
Power Consume:working.48W; Standby.3W
Horizontally Scan Frequency:30 ~ 60KHz
Vertically Scan Frequency:55~75Hz
Operating Conditions:Temperature:00C~500C Humidity:20%~80%
Storage Conditions:Temperature:-200C~600C Humidity:20%~80%
Packing Information:
Packing list: CCTV monitor,User Manual, Power Adapter, Power Cord, VGA Cable, Audio Cable, Remote controler.
Packing Material: Carton Box, Poly-form & Static Plastic inside
Machine size: mm
Packing size: mm
Net weight: about kg
Gross weight: about kg
Applicable Fields: various surveillance and protect field
