Brand: JINWEI
Model: HLX-001
wire mesh
wire screen
filter screen

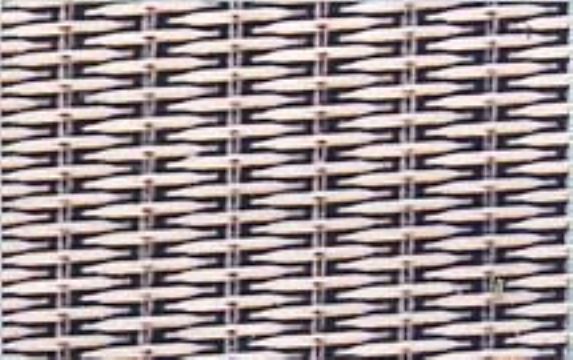

Stainless Steel Plain Dutch Wire Mesh (dutch woven)
Material: Stainless Steel Wire, Nickel Wire, Brass Wire.
Weaving Ways: While the warp wires remain straight, the weft wires are plain woven to lie as close as possible against each other in a linen weave forming a dense strong material with small, irregular and twisting passageways that appear triangular when diagonally viewing the weave.
Usege: This type of cloth is most frequently used for high pressure filtration processer to separate from other medium .It is widely used in industry of spaceflight, petrolum, chemical and so on.
Mesh (warp*weft): 7*40-100*1200
Wire Diameter(warp*weft): 0.9*0.71-0.063*0.036mm
