Razor Barbed Wire Machine

Main technical parameter:
This machine undertake by three wrap wire machine and one main machin that can cut nine barb belt make up.
It reflects perfectly:
1. High efficiency:can produce the steel belt 80kgs per hour.
2. It is low to loss, the raw materials loss of the old model is 40%, and JC-9 type drops to 15%.

External dimension:
1. The wrap wire machine(long *width *high): 3 X 1.3mX 0.7mX 1.1m
2. The main machine (steel belt presses judging machine) (Long *width *high): 1.1mX 0.85mX2.0m
3. Accept wire machine(Long *width *high): 1.4mX 0.75mX 1.0m
4. Total weight: 2.6T
This apparatus is made for specializing in the razor barbed wire, mainly divided into two parts:

Ⅰ. The steel belt presses judges part: Adopt JB-23 press machine, pressure 25T

The largest rotational speed 100r/min, power 2.2KW

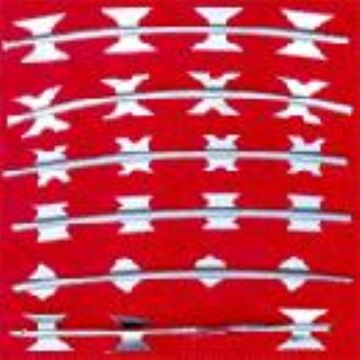

Produce razor barbed wire long 25mm, 22mm, 15mm, 11mm once of razor blade,etc.. Various specifications should make the mould.
Cut out steel band divide 9 steel belt into partly, produce board thick 0.5mm per hour, of long 22mm, 80kgs of steel band

Ⅱ. Some of taking shape machine of one pack of lines: Wrap up the steel wire and razor blade steel band together, do a round long network that needs.
