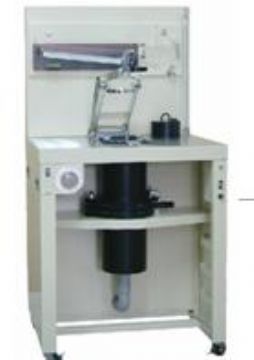

Air Permeability Tester
Air Permeability Testing
This tester is ued for checking knitting, woven fabric, non-woven fabrics and other textile materials in certain pressure on the permeability properties.
Standard：JIS L1018, L1096 ASTM-D737

Testing Range：０.５～３９０㏄/c㎡／sec
venthole area：３８.３c㎡
aperture（９）：１、1.4、２、３、４、６、８、１１、１６㎜Φ
Oblique air-pressure tester：water post ０～３０㎜
vertical air-pressure tester：water post ０～４００㎜
Power: 1PH, AC220V, 50/60Hz
