Brand: ALEPH
Model: ABE
Min. Order: 1
Detector

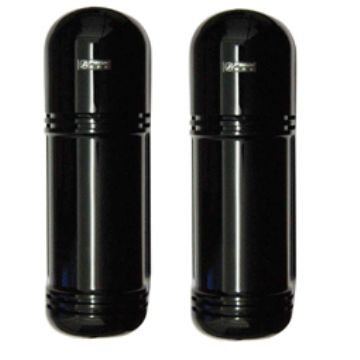

Product Name : ABE series 3 Beams Active Photoelectric Detector
Item # : 11040-144
Model : ABE-50/100/150/200/250
Was Price: CNY0/pcs.
Now Price : CNY0/pcs.
Last update : 2008.04.12
Manufacturer : Aygav

Features:


● Wired system and BUS system compatible, holographic spot real-time report.
● Unique DSP chip, patented multi-dimensional mistake-corrective code,true detection alarm technology.
● Integrated design, multi installation brackets selectable, the most convenient installation.
● Unique displacing receiving, transmitting parts with big power.
● Full function checking, self-adaption in environment and trouble locking.
● Patented balanced checking, unique digital filtering.
● Adopts solid relay with long usage, non-contact, low voltage and little power consumption.
● 4 frequencies selectable

Specificarion：
Model
ABE-50/B
ABE-100 /B
ABE-150 /B
ABE-200 /B
ABE-250D/B

Outdoor distance
50m
100m
150m
200m
250m

Indoor distance
150m
300m
450m
600m
750m

beams
3

Optical source
Infrared digital pulse mode

Response
Speed
50～700ms

Alarm Output
NC&NO contact rating AV/DC 30V/0.5A

Alarm Output-bus
MA bus across wave carrier model

voltage
DC 9～24V; AC 11～18V

Current
60mA
60mA
60mA
60mA
65mA

Longevity model
30mA
30mA
30mA
30mA
32mA

Operation
Temperature/
Humidity
-25℃～60℃ 5%～95%

Level Adjustment
Axis
180°(±90°)

vertical Adjustment Axis
±10°

Tamper Output
NC contact rating AV/DC 24V/0.5mA

BUS output
RS-485(for model F8)

Crust Material
PC resin tin metal
