Brand: ALEPH
Model: ABT
Min. Order: 1
Detector
ALEPH Detector

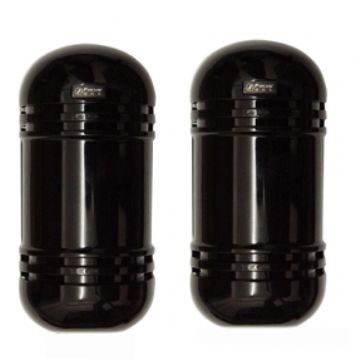

Product Name : ABT series 2 beams active photoelectric detector
Item # : 1146-773
Model : ABT-20/40/60/80/100/150
Was Price: CNY0/pcs.
Now Price : CNY0/pcs.
Last update : 2008.04.12
Manufacturer : Aygav

Features:


● Disqualification function.
● Wired system and BUS system compatible, holographic spot real-time report.
● Unique displacing receiving, transmitting parts with big power.
● Patented balanced checking, unique digital filtering.
● Full function checking, self-adaption in environment and trouble locking.
● Patented coaxial aspherical highly accurate lens with double focus.
● Unique DSP chip, patented multi-dimensional mistake-corrective code,
true detection alarm technology.
● Adopts solid relay with long usage, non-contact, low voltage and little power consumption.
● Upper and lower optical mirror adjusting structure simultaneously,
faster and more accurate adjustment.
● Fully air-proof structure.
● Can adjust beams without opening outer case.


Specificarion：
Model
ABT-20/B ABT-30/B ABT -40/B ABT-60/B ABT-80/B ABT-100/B
Outdoor distance
20m 30m 40m 60m 80m 100m
Indoor distance
60m 90m 120m 180m 240m 300m
beams
2
Optical source
Infrared digital pulse mode
Response
Speed
50～700ms
Alarm Output
NC&NO contact rating AV/DC 30V/0.5A
Alarm Output-bus
MA bus across wave carrier model
voltage
DC 9～24V; AC 11～18V
Current
40mA 40mA 55mA 55mA 65mA 65mA
Operation
Temperature/
Humidity
-25℃～60℃ 5%～95%
Crust Material
PC resin tin metal
Level Adjustment
Axis
180°± 90°
vertical Adjustment Axis
±10°
Tamper Output
NC contact rating AV/DC 24V/0.5mA
Housing material
Polycarbonate
