Price: CNY 1 / PCS
Min. Order: 1 PCS PCS

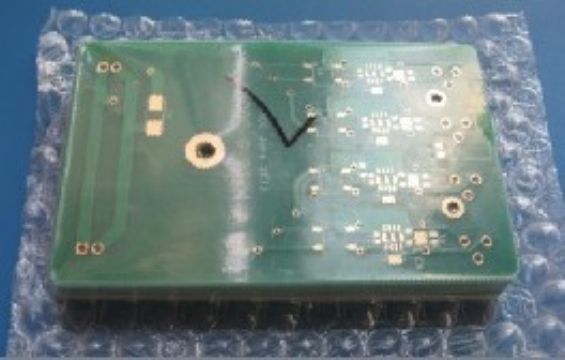

Double sided MCPCB
Double sided MCPCB
1. Aluminum core, 125*73mm=1PCB
2. Double sided
3. Thermal conductivity: 2.0W/MK
4. Green solder mask/ white text
5. 2 OZ copper finished
6. 2.4mm finished thickness
7. Immersion Gold
8. Plated through hole (PTH)
9. layer stack up
------solder mask
------copper 70μm (layer 1)
------dielectric thick 75μm
------aluminum core 2.0mm
------dielectric thick 75μm
------copper 70μm (layer 2)
------solder mask
