Brand: BILL
Model: 80w-1300-80
Price: USD 250 / PC
Min. Order: 1 PC

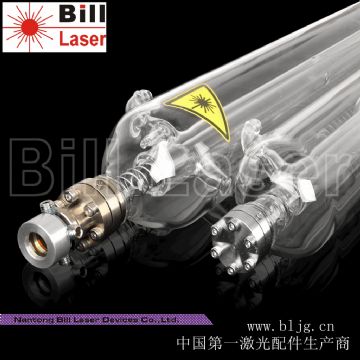

80W
CO2
Laser tube
Model:
80W Wavelength:
10.6μm Output power stable value:
80W
Length:
1300mm Sti excitation :
electric excitation
Max output power
:90W
Pipe diameter:
80±1mm Guo beam:
linear reasonably Fai voltage:
22 KV

Typeof cooling:
Water-cooling 15-25℃ Beam divergence Angle:
3.1mrad Working votage:
17 KV
impulse frequency
100% to 5KHZ Light beam quality
≤1.1 Starter current
5±1mA
Weight:
7 KG Stability:
10% Working current
25mA
Outer packing:
30*30*1200mm Lasing mode:
　Much lower order film
Spot diameter
4±1mm
