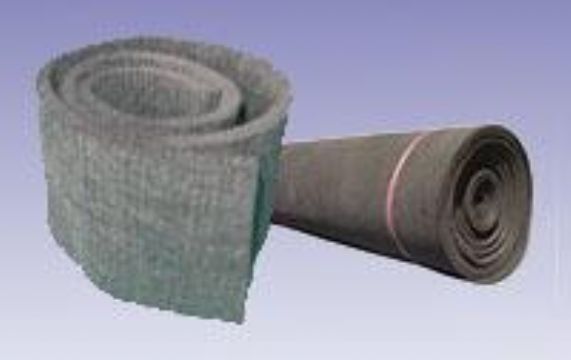

Carbon Fiber(Graphite) Felt

Carbon Fiber(Graphite) Felt

Carbon Fiber(Graphite) Felt

Detailed Selling Lead Description
carbon fiber Felt
graphite felt
thermal insulation
It is based on PAN/ rayon fiber, the manufacturing process is pre-oxide, needle-punched, Carbonization, graphitization. It's an excellent material used in high- temperature thermal insulation.

(1) PAN carbon fiber felt
Rayon carbon fiber felt

Area Density: 400~1350 g/m2
Carbon Content: 90~95%
Tensile strength: Warp: 8~14, Weft: 10~ 16

Thermal conductivity: <0.08 w/m. K
Ash contents: 0.765%, 0.402%
Thickness: 3/6/10/12 mm
Width: Max: 1200 mm
Length: Max: 15000 mm

(2) Graphite Felt
Area Density: 600~1800 g/m2
Carbon Content: 99-99.5%
Thermal conductivity: <0.08 w/m. K
Ash contents: 0.71%
Thickness: 3/6/10/12 mm
Width: Max: 1200 mm
Length: Max: 15000 mm

Note:
1. When temperature is above 400 centigrade, the product must be used in protective atmosphere or inert gas.
2. It can be cut free geometrical shape.

USE:
1. For thermal insulation: Vacuum resistance furnace, induction furnace, Sintering furnace, etc.
2. For electrical conductive: Porous electrodes, etc.
3. For heating materials: Carbon fiber crystal heating tube.
