Brand: INTEKE
Model: 630E
Min. Order: 1
needle detector

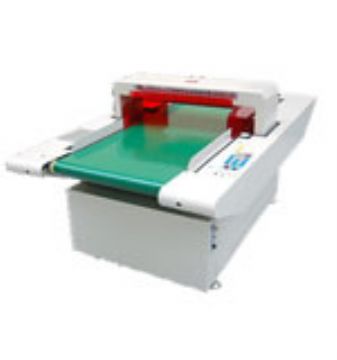

630E intelligent fully-automatic needle detector
Product Information
Brand: Inteke
630E intelligent fully-automatic needle detector

Needle detector Application:
◆ Applicable to detect needle and other iron remains for underwear, shirts, sweaters, down coats, shoes, socks, bed linens and plush toys.

Needle detector Features:
◆ With excellent interference resistance:
◆ (1) can effectively resist interference caused by ceiling fans, motors, computers, sewing machines, embroidery machines, cars, etc.;
◆ (2) can effectively resist all kinds of electromagnetic interference
The equipment module is imported from Japan and the conveyor belt from the Netherlands;
◆ Intelligent integrated circuit chip;
◆ Three available functions for choice: 0-10 grades regulation, counting; and stopping or automatic turning back of the conveyor belt. B and C type detection ways are available;
◆ B and C type detection ways are available
◆ Deliver alarms by audio, light, and frequency display;
◆ Eight marks to precisely indicate the needle remains’ position;
◆ The equipped inducer will force goods under the gantry to accept detection, with good detection results and no mistakes, when the goods can be subject to extrusion and the good’s apex is just a little higher than the gantry.

Needle detector Specifications:
◆ Power Supply: AC220V±10%;
◆ Power: 60W;
◆ Sensitivity: φ1.2m≥20MM;
◆ Size: 1820X1040X900MM;
◆ Weight: 250KG;
◆ Detection Height: 100MM-200MM; Detection Width: 600MM(non-standard);
◆ Test Standard: ≥φ0.8(Fe); ≥φ01.5(Fe)
