Brand: Konica Minolta
Model: cl-200
Color Meter

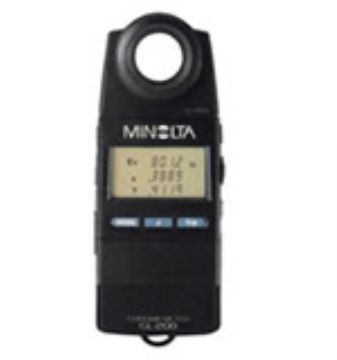

CL-200 Incident Color Meter
Product Information
Brand: Konica Minolta
- User can use the CL-200 to measure illumination, color temperature and chroma values by "non-touch" measurement.

- CL-200 contains coloring systems like XYZ, Ev xy, Ev u'v', Tcp, etc.

- Up to 30 probes can be connected to CL-200; Computer connection available;

- Mainly used in illumination management and CRT color control.

- Simple,portable and easy-operating.



Introduction
Perfect solution for colour, illuminance and colour temperature
Handheld and lightweight instrument for color, illuminance and color temperature measurements.

The portable Konica Minolta color meters are in their element when not only the brightness but also the color of light is to be measured. The wide selection offers the appropriate instrument for every application, from the simple tristimulus unit up to a spectroradiometer with spectral lenses.

Areas of application
Practically anything that illuminates can be measured with Konica Minolta's incident color meters. The possible uses range from research and development to production.
The CL-200 is a lux meter with a color function for workplace and street illumination, the production of lamps, or the measurement of very large surfaces and projectors (ANSI lumens) by taking advantage of the serial connection of several receptor heads.

Handheld and lightweight instrument for color, illuminance and color temperature measurements
The CL-200 is a Incident Color Meter designed to measure and display the tristimulus values, chromaticity, color difference, correlated color temperature and illuminance of light sources. Applications include research and development and color inspection of light sources whether for manufacture or end use, setting up and adjustment of projectors and other display devices and environmental and psychological experimentation and testing.

The CL-200 is a replacement for two instruments - the CL-100 and XY-1- and includes many new features. Immediate measurement is possible from turning on the unit by quick automatic zero adjustment so it is always ready to move at the speed of light. Sometimes it is necessary to measure remotely for matters of safety or convenience so the CL-200 receptor can be separated and connected up to 100m away from the measuring body by LAN cable. An RS-232 interface is built in to allow connection to PC and connection to thermal printer is also optional should a printout of measured data be required for validation.

Like the T-10 range of Konica Minolta illuminance meters, the CL-200 allows multi-point measurement - from 2 to 30 additional receptors connected to one main body. This is particularly useful should the operator wish to measure light across a large area, like the whole of a projector screen, for example or light falling across a room or open field.
