Brand: PST
Model: PST-IPC510
Min. Order: 1 pcs
real time ip camera monitoring system
ip camera
ip monitoring camera

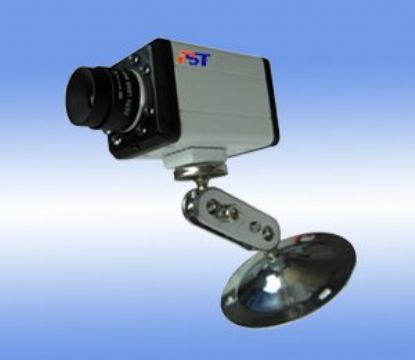

Real Time IP Camera Monitoring System

Name: 1/4" CMOS IR M-JPEG Real Time IP Camera Monitoring System 300000 pixels

Model: PST-IPC510



Introduction



The IP Camera combines a high quality digital video camera with network connectivity and a powerful web server to bring clear video to your desktop from anywhere on your local network or over the Internet.



Description:

1. It is a video-transmission device based on net. The VGA/QVGA video will be transmitted through LAN/WAN at most 30 frames per second. The video is compressed by M-JPEG

2. It adopts the TCP/IP network protocols and has inner web server. It is very simple to use, users can browse video through all kinds of browser.

3. It supports VGA/QVGA/QQVGA three resolutions, video quality class, video display layout, working environment and other video settings.

4. The infrared lights will start to work automatically when the environment is dark.

5. Detector can be connected to it for detecting alarm.

6. Support P2P protocol, it adapts to more network environment

7. All the IP Cameras have a factory-default device id, device password and a domain name on it. You don’t need to d0 any configuration, when the item is to be connected to Internet, you could visit the device by this DDNS.

8. Free customer-end software “IPC Monitor” will be present to the users. Users can browse several devices, record video for long time and realize the alarm check.



Standard Package Included:

IP camera X1

IP Camera Utility CD X1

5V Power Adapter X1

Bracket X1

Cable X1





Technical Parameter:



Item
Sub item
Specification

Image Capture
Sensor
1/4" CMOS sensor

Total of pixel
300k

Minimum illumination
5Lux/F2.0, IR on,0 Lux

Lens
f=4.0mm, F=2.0, Fixed Iris

Assistant
Lighting Control
Auto control

Lighting
8pcs 850nm Infrared LEDs, 5m distant

Video
Resolution
VGA/QVGA/QQVGA

Compression
MJPEG

Framerate
30fps/QVGA,30fps/QQVGA,15fps/VGA

Bitrate
100kbps ~ 4.5Mbps

Image Rotation
Mirror / Flip

Network
Basic Protocol
TCP/IP,UDP/IP,HTTP,DHCP,DDNS

Other Protocol
P2P

Other Features
Video control
yes

User Setting
yes

DDNS
A free DDNS provided by manufacturer

Hardware Interface
Ethernet
10Base-T/100base-TX

Alarm In
1 Way

Physical Index
Weight
180g

Main body
78mm(L)*51mm(W)*58mm(H)

Power
DC 5V

Power consumption
<3W

Operating temperature
0°C~ 45°C

Humidity
10% ~ 80% non-condensing

Software(PC Side)
OS Supported
Microsoft Windows 98/2000/XP/Vista

Browser
All of the browsers

Application Software
IPCMonitor.exe
