Brand: PST
Model: PST-IPC540/520/420
Min. Order: 1 pcs
ip poe camera
waterproof ip camera
outdoor ip camera
IP POE Camera

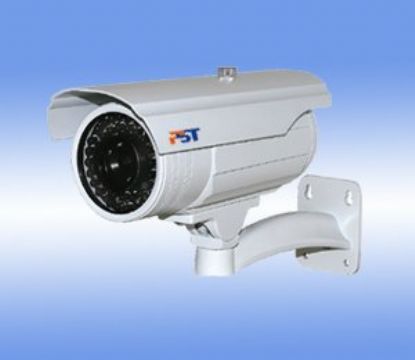

Name: Outdoor Waterproof IP POE Camera SONY CCD

Description:

•Waterproof IP Camera, IP66

•Up to D1 image, H.264

•Support IE browser

•At the same time to support audio and video output



Parameters:

Model
PST-IPC540
PST-IPC520
PST-IPC420

Horizontal Resolution
540TVL
520TVL
420TVL

Image Sensor
1/3" SONY

Image Resolution
720×576 / 720×288 / 352×288

Signal System
PAL/NTSC

Min. illumination
0.05Lux; 0LUX/F1.2 (LED on)

Lens
8mm CS

Electronic Shutter
PAL: 1/50~1/100,000ses ; NTSC:1/60~1/100,000ses

Video Compression
H.264

Video Output
1Vp-p/75ohm

Fps
25 frames / second (PAL); 30 frames / second (NTSC format)

Video Parameters
Contrast, brightness, chroma, saturation can be adjusted independently

IE Access
Built-in WEB SERVER

IR Leds
42pcs

IR View Distance
40m

Network Interface
10BaseT/100BaseTX Ethernet interface

Network Protocol
TCP/UDP/HTTP/MULTICAST

Transfer Mode
Lord, Vice-stream

IP Address
Static, dynamic, domain name resolution

OSD
Time, date, custom characters

System clock
Built-in clock, support for external synchronization

Remote Management
Support network remote upgrade

POE Standard
IEEE 802.3af

Waterproof grade
IP66

Power Supply
DC 12V

Operation Temperature
-10 degree C to +50 degree C
