Brand: PST
Model: PST-VD906C
Min. Order: 1 pcs
door video intercom
video door phone
video intercom doorbell
Door Video Intercom

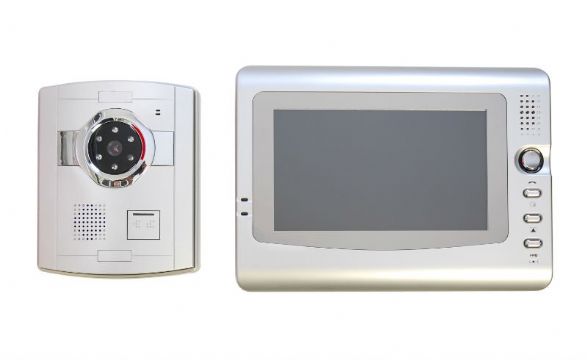

Name: Handfree Color Door Video Intercom for Villa

Model: PST-VD906C

Description:

1.Talk: when the “call” button on outside door was pressed, the music will be triggered at home. In 20 seconds, if press “call” button on indoor monitor, the talk process is established. Video picture can be viewed on indoor monitor. After talking and press “call” button on indoor monitor, the talk process is ended. If not press “call” button after music started for 20 seconds, the music will automatically stop. The maximum talk time is 90 seconds.
2.Monitor: In idle state if you want to view the outside video picture, press the “Monitor” key. Press again will stop the video viewing.
3.Unlock: If you have installed electronic controlled lock with the system, you can use the “unlock” key to open the door when in intercom mode.
4.Select music: There are 3 kinds of music for user to select.
5.Select music volume: There are 4 volumes for user to select.
6.Adjust screen brightness
7.If one outdoor camera connects with 2 indoor monitors, you can call between 2 monitors.
8.Hot function: one outdoor camera can support four indoor monitors; and one indoor monitor can support two outdoor camera.


Standard package includes:

indoor monitor x 1

outdoor station x 1

adapter x 1

English user manual x 1

cable x 1





Parameters:

Outdoor camera:

Power
DC 14V

Camera
CMOS 300000 pixels. Angle of view is 90 degree

Illumination
6pcs infrared light

Lens
1/3 CMOS 380TVL

Size
125*185*60mm




Indoor monitor:

Power
Input: AC 100-240V, 50/60Hz; Output: DC 14V

Screen
7” TFT

Resolution
960*234 pixels

Communication Mode
Handfree

Wire connection
4-wire connection

Chime Melody
3 chimes

Max. power consumption
20w

Size
229*162*33mm




Operating conditions:

1.Operating temperature range: -15°C to +55°C
2.Operating humidity: <85%
