Detailed Product Description

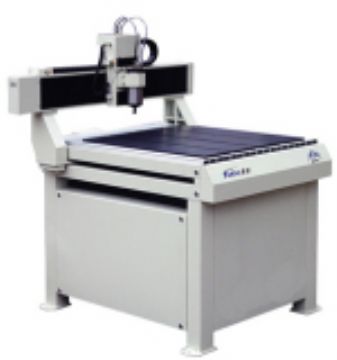

Suda powerful CNC engraver
Distinguish Features
Stiff: Integral cast-iron frame, embedded linear, much more stable and solid
Accuracy: Rolling ball screw from Germany, two nut eliminating clearance, advancedfixing mode of three bearings
Strong: Configured 2.2kw inverter-driven spindle motor cooled by water
Superior: Adopt the most advanced DSP controlling system

Application
Strong functions: Easy operation, sturdy, durable, reliable performance, reasonableprice, wide application; Can be applied to process any wood products, sign boards, bill plates, chest brands, seals, metal foil molds, construction moulds, instrumentspanel, woody products, industrial moulds
Any metal or non-metal material can be processed, for example, iron, copper, aluminum, plastic and wood plates etc.

Model: SD8070, SD1208, SD1212, SD1218, SD1325
Working area: 700*800*80mm, 1200*800*80mm, 1200*1200*80mm, 1200*1800*80mm, 1250*2500*80mm
Spindle motor: 2.2kw inverter-driven spindle motor cooled by water
Engraving speed: 6000~12000mm/min
Rotation speed of spindle: 6000~24000rpm
Engraving tools: 3.175 4 6 (optional)

Formate dictate G-code
Ball screw: Two-nut rolling ball screws from Germany

Resolution: 0.01mm
Servo system (optional)
Dust collecting System (optional )
Vacuum System (optional )
Note: Any changes of technical parameters without notice

Performance Features

High Speed: Synchronization of processing curves and straight lines can be up tospeed of 12m/min
Massive Memory Capacity: Standard capacity of 32M, store 9 files simultaneously makeprocessing at ease
Quick Data Transmission: USB interface, work without computer, not occupying computerresources.
Multi-Compatibility: Be compatible with popular CAD/CAM software: Type 3/Artcam/Casmate/Proe/UG/Artgraveetc.
Easy Operation: Restore from power off, continuation on break points, anticipateworking time, user-friendly designing
