Brand: CrossQ
Model: FM-SLVQ
Min. Order: 1set
filling machine
liquid filling machine
vertical filling machine

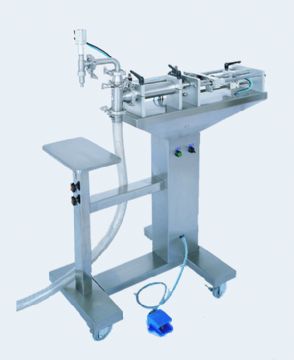

Semi-auto Filling Machine for Liquid FM-SLVQ
(Pure Pneumatic & Vertical Type)

※FEATURES※
1. This machine is belonged to semi-automatic piston type filling machine for liquid.
2. Filling quantity and speed can be adjusted..
3. Easy to operate, with high accuracy, simple to maintain and clean.
4. Pneumatic parts: normally adopt Airtac brand, also can choose FESTO,
5. Can set manual or automatic mode.
6. With good structure, easy to removal & installation.
7. Material contact part with SUS316, meet GMP operational standard.
8. With excellent design, with vertical and small structure to save installation space.
9. Be suitable for various products with small weight.
10. Seal parts with silicone rubber which with high anti-abrasion, anti-heat, anti-acid,
anti-corrosion function, with fluorine rubber which is high anti-abrasion, anti-resistance, anti-acid, and anti-corrosive.

※APPLICATION※
FM-SLVQ mainly used for filling liquid, such as lotion, care solution liquid, shampoo, wash clean, lubricants, oil etc.


※SERIES※
Type Filling Range Filling Speed Air supply Power Supply Dimension(mm) Weight
FM-SLVQ/100 10-100ml 10-40 pcs/min 115L/min / 1230x600x1210 40kg
FM-SLVQ/250 30-250ml 10-40 pcs/min 100L/min / 1180x600x1210 43kg
FM-SLVQ/500 100-500ml 10-40 pcs/min 210L/min / 1300x600x1210 46kg
FM-SLVQ/1000 200-1000ml 10-40 pcs/min 315L/min / 1510x600x1210 52kg
FM-SLVQ/2000 500-2000ml 5-15 pcs/min 405L/min / 1800x650x1210 58kg
FM-SLVQ/5000 1000-5000ml 5-15 pcs/min 456L/min 1900x650x1210 64kg
