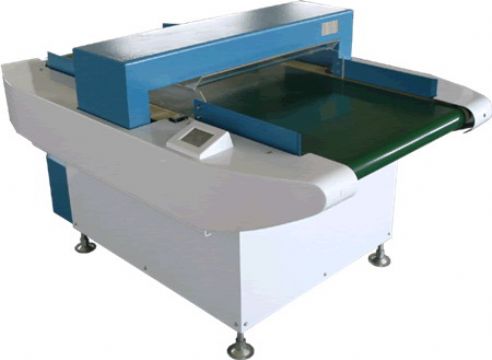

Auto-Conveying Type Needle Detector Nc-C

Auto-Conveying Type Needle Detector Nc-C

Auto-Conveying Type Needle Detector Nc-C

Detailed Selling Lead Description
Brand: CrossQ
Model: NC-C
Min. Order: 1set
needle detector
garment detector
needle detection
Auto-Conveying Type Needle Detector NC-C
LCD Touch Screen Operational Panel
※FEATURE※
1. Accurate locating technology for metal impurities, rich customer functionality, be easy to
operate.
2. The core system and part of digital signal processing are based on high speed 32bit RISC CPU.
3. Use LCD touch screen technology and based on multi language operation system.
4. Cycled magnetic sensor, excellent anti-disturb performance.
5. Individual sensibility adjusting for every channel, fit for more product detecting.
6. Smart report system( data printing system), provide kinds of report.
7. The control systems are based on RS-485 bus technology.
8. Installed machine state indicator and operator guider which are based on matrix LED display
technology.
9. Optional conveying mode after alarm, and optional automatic restart.
10. Reliability mechanical frame design, Hi stable during detection.
11. Designed for universal AC power supply, switch power supply.
※PURPOSE※
● Detecting broken needles and magnetic metal impurities in sewing products, such as: garments,
fabric, knit underwear, shoes, hats, toys, crafts, down products, bedding products, carpets etc.
● Detecting magnetic metal impurities in foods, pharmaceutical products.
● Detecting magnetic metal impurities in chemical raw materials, rubber, paper etc.
● Detecting magnetic metal impurities in pure Copper, Aluminum, Stainless Steel.
※SPECIFICATIONS※
● Type: NC-C(100)
● Detection Method:Magnetic induction
● Detection adjustment: Max.100 steps/channel
● Detection sensitivity: Fe¢0.8mm
● Detection width: 650mm
● Alarm method:Buzzer、Lamp
● Belt speed:32m/min(50HZ)、40m/min(60HZ)
● Power source: AC200-240V 50-60HZ
● Rated output: Appr140W
● Weight: Appr220Kg
● Dimension 1650mm(L)*1100mm(W)*900mm(H)
※SERIES※
Detection Height Detection Sensitivity Remark
100mm ¢0.8mm steel standard
120mm ¢1.0mm steel option
150mm ¢1.2mm steel option
200mm ¢1.5mm steel option
>200mm >¢1.5mm steel option
●Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
