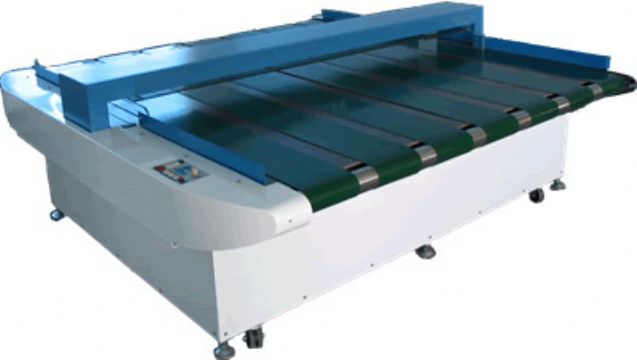

Auto-Conveying Type Needle Detector NC-A2500
With 2500mm Detection Width / Button Operation Mode
※FEATURE※
1. Based on LED bar displayed control panel, with products counting function.
2. Hi accuracy detection locating technology.
3. Level setup indication and real-time sensitivity display.
4. Optional conveying mode after alarm.
5. Optional automatic restart.
6. Reliability mechanical frame design, Hi stable during detection.
7. Designed for universal AC power supply, switch power supply

※PURPOSE※
● Detecting broken needles and magnetic metal impurities in sewing products, such as: down-
products, bedding products, carpets, garments, fabric, etc.


※SPECIFICATIONS※
● Type： NC-A2500(100)
● Detection Method：Magnetic induction
● Detection sensitivity： Fe¢0.8mm
● Detection adjustment： 1-10steps
● Detection width： 2500mm
● Alarm method：Buzzer、Lamp
● Belt speed：32m/min(50HZ)、40m/min(60HZ)
● Power source： AC200-240V 50-60HZ
● Rated output： Appr160W
● Weight： Appr750Kg
● Dimension 2350mm(L)*2450mm(W)*950mm(H)

※SERIES※
Detection Height Detection Sensitivity Remark
100mm ¢0.8mm steel standard
120mm ¢1.0mm steel option
150mm ¢1.2mm steel option
200mm ¢1.5mm steel option
＞200mm ＞¢1.5mm steel option
●Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
