Brand: CrossQ
Model: NC-AA
Min. Order: 1set
needle detector
garment detector
garment machine

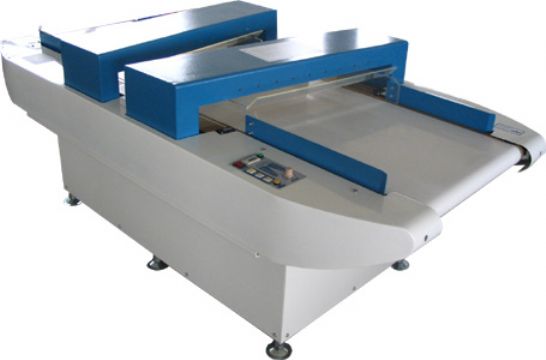

Auto-Conveying Type Needle Detector NC-AA
With Double Detection Heads / Button Operation Mode
※FEATURES※
1. Double Detection Structure, excellent anti-disturbance performance.
2. Based on LED bar displayed control panel, with products counting function.
3. Hi accuracy detection locating technology.
4. Level setup indication and real-time sensitivity display.
5. Optional conveying mode after alarm.
6. Optional automatic restart.
7. Reliability mechanical frame design, Hi stable during detection.
8. Designed for universal AC power supply, switch power supply

※PURPOSE※
● Detecting broken needles and magnetic metal impurities in sewing products, such as: garments,
fabric, knit underwear, shoes, hats, toys, crafts, down products, bedding products, carpets etc.
● Detecting magnetic metal impurities in foods, pharmaceutical products.
● Detecting magnetic metal impurities in chemical raw materials, rubber, paper etc.
● Detecting magnetic metal impurities in pure Copper, Aluminum, Stainless Steel.

※SPECIFICATIONS※
● Type： NC-AA1500(100)
● Detection Method：Magnetic induction
● Detection sensitivity： Fe¢0.8mm
● Detection adjustment： 1-10steps
● Detection width： 1500mm
(detection width can be optional based on actual requirement, from 600mm-2000mm)
● Alarm method：Buzzer、Lamp
● Belt speed：32m/min(50HZ)、40m/min(60HZ)
● Power source： AC200-240V 50-60HZ
● Rated output： Appr140W
● Weight： Appr240Kg
● Dimension 2300mm(L)*1650mm(W)*900mm(H)

※SERIES※
Detection Height Detection Sensitivity Remark
100mm ¢0.8mm steel standard
120mm ¢1.0mm steel option
150mm ¢1.2mm steel option
200mm ¢1.5mm steel option
＞200mm ＞¢1.5mm steel option
●Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
