Wide Type Needle Detector Nc-W1000

Wide Type Needle Detector Nc-W1000

Wide Type Needle Detector Nc-W1000

Detailed Selling Lead Description
Brand: CrossQ
Model: NC-W1000
Min. Order: 1set
needle detector
garment detector
needle detection

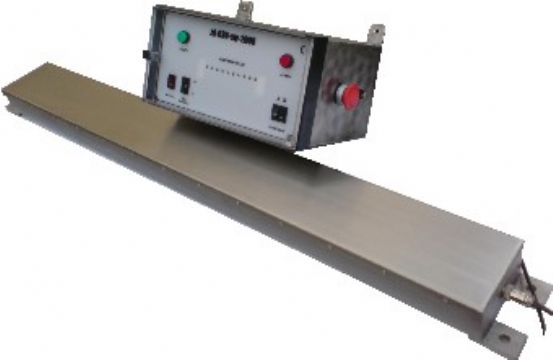

Wide Type Needle Detector NC-W1000
※FEATURES※
1. High quality magnetic structure, stainless steel shell, good appearance with high sensitivity, and
be durable.
2. Separate structure of detection and control part, with high anti-disturbance performance, and
install easily.
3. Touch-sensitive buttons control 8 steps display. Hi stable during detection.
4. 10 LED signal display, with warning light device.
5. New SMD circuit technology to control external appliances.
6. Designed for universal AC power supply, switch power supply

※PURPOSE※
● Detecting broken needles and magnetic metal impurities in sewing products with wide width,
such as: down products, bedding products, fabrics (woven), carpets etc.
● Detecting magnetic metal impurities in foods, pharmaceutical products.
● Detecting magnetic metal impurities in chemical raw materials, rubber, paper etc.
● Detecting magnetic metal impurities in pure Copper, Aluminum, Stainless Steel.
● Can install on fabric inspection machine, or use support to fix, install on fabrics production lines to finish detection.

※SPECIFICATIONS※
● Type: NC-W1000
● Detection Method:Magnetic induction
● Detection sensitivity:Max.80mm height by steel needle (¢0.6*L33mm)
Max.110mm height by steel needle (¢0.7*L25mm)
● Detection adjustment: 1-8steps
● Detection width: 100mm
● Detection length: 1020mm
● Alarm method:Buzzer、LED Lamp, warning device
● Power source: AC220±10%, 50-60HZ
● Rated output: Appr25W
● Weight: Detection Part: 15kg; Control Box:2.65kg
● Dimension:
Detection Part: 1200mm(L)*100mm(W)*45mm(H)
Control Box: 280mm(L)*265mm(W)*105mm(H)

●Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
