Brand: Rehoo
Model: CWC-230Ns
Min. Order: 1
Check Weigher
weighing system
weigher check

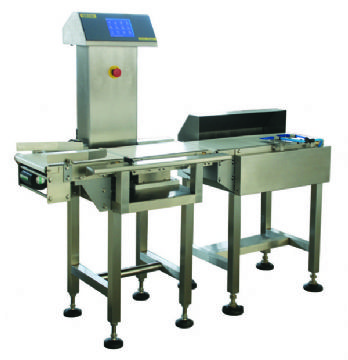

Check Weigher CWC-230NS
【FEATURES】
1.Strong stainless steel structure; Water proof design.
2. High accurate load cell; Based on advanced DSP technology.
3. Automatic weighing compensation and zero tracking.
4. 100 products preset; Easy to edit and recall.
5. Quickly product shift and speed recall.
6. 2000 sorting records; Printer output ready.
7. LCD with Touch screen; Friendly operation interface.

【PURPOSE】
◆ Applied to automatic online package weighing and sorting.
◆ Auto-Statistic function turn weighing, maintenance, operation, statistic to more easier.

【SPECIFICATIONS】
Model CWC-230NS
Measurement Strain Guage
Rejection Air Jet / Flapper / Pusher / Falling Drop (Option)
Operation Touch Screen
Alarm Buzzer & Lamp
Belt Width 230mm
Belt Speed 31-70m/min
Power AC110V/220V 50-60HZ
Rated Output Appr.200W
Dimension 1468mm(L)*558mm(W)*1285±35mm(H)
Weight 68kg + 44kg

【FC-230NS CHART】
Weight Max. Speed Accuracy
7-99g 70bags/min ±0.5g
100-199g 60bags/min ±0.5g
200-399g 50bags/min ±0.5g
400-999g 45bags/min ±1.0g
1000-2999g 40bags/min ±2.0g
3000-5000g 30bags/min ±2.0g
