Brand: CWT
Model: WT11-RS-16
Min. Order: 1000 pcs
dip switch
toggle switch
dial switch

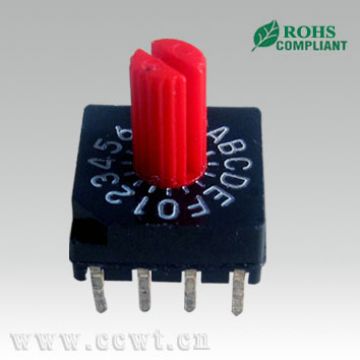

Rotary DIP Switch

a).ELECTRICAL SPECIFICATIONS
Operating voltage: 24VDC Max.
Contact load,static: 400mA Max.
Contact load,dynamic: 150mA Max.
Initial contact resistance: 80Megohm Max.
Insulation resistance: 100Megohm Min.

b).SOLDER RECOMMENDATIONS
Hand Soldering:340 degrees Max. for 2 seconds Max.
Wave Soldering:260 degrees. Max. for 10 seconds Max.

c).PACKING
Switches are packed in standard IC Tube Package,47 pcs per tube,and the accessories are bags.

d).MECHANICAL DATA
Expected life: 10,000 steps
Position per rotation: 10, 16
Operating temperature: -20 degrees to 70 degrees

e).MATERIALS
BASE: Engineering plastics,Black.
COVER: Engineering plastics,Black.
Actuator: Engineering plastics
Contacts: Alloy copper,Gold over nickel plated
TERMINAL: Alloy copper,Tin plated

f).Optional Information
- HS Code : 8538 Parts Switches, Automatic Circuit Breakers, Relays or Connector
- Payment : T/T
- Origin : China
- Minimum Order : 2000
- Inspection : ROHS
- Samples : Free
