Brand: YuNeng
Model: YL Series
Price: USD 10000 / set
Min. Order: 1 set
oil purifier
oil filter
oil recycling plant
Product Description

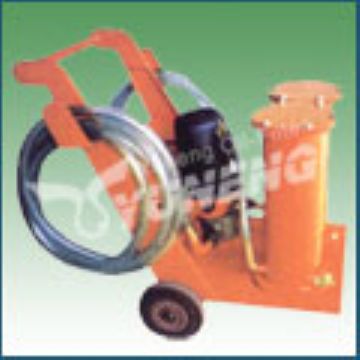

Adopting the way of multi-stage filtration, the series are simple in operation and convenient in maintenance, which are suitable to remove the impurities out of the oil, such as insulating oil, turbo-oil, machine oil and hydraulic oil etc.

They can be fitted with different types of filter-assemblies. With the advantages that low cost and high filtering accuracy. They are the latest substitution products of the series of plate-frame pressure oil-filter.

Technical Para. Type
Unit YL-50 YL-80 YL-100 YL-150 YL-200
Flow capacity L/min 50 80 100 150 200
Motor Power KW 1.1 1.5 2.2 3 4.4
Diameter of inlet-outlet hose mm 32/25 38/32 44/38 48/44 64/48
Weight Kg 100 120 150 200 260
Working pressure Mpa ≤0.5Mpa
Working electric power 50Hz380V 3-Phase 4-Wire
Filtering accuracy um ≤5
Delivery lift m ≥15
