Detailed Selling Lead Description
Brand: Annso
Model: IPPC-1742
Min. Order: 20 pcs
Industrial computer
LCD Industrial computer
Advanced industrial computer
Industrial Computers,LCD Industrial Computer,Advanced Industrial Computer,17 Inches LCD Industrial Computer

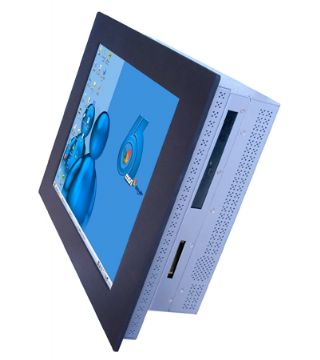

17 Inch Industrial computer IPPC-1742

Features

17" Industrial Panel Computer
High performance PC up to Pentium 4
17" SXGA TFT LCD
Modularized system Design
Resistive Touch screen (optional)
2-slot PCI extension
NEMA 4/ IP-65 compliant front panel

System


Board size: Mini-ITX (170X 170mm )
Intel® P4 Socket 478 / LGA775 processor up to 3. X G HZ
Upgradable standard SDRAM / DDR memory
System Fan: 2* (60x60x 10mm ) cooling fan
Speaker: 2* 2W Stereo Speaker
OSD : Brightness, Contrast, H/V Position, Color, Phase, Clock, Management
Construction: Heavy duty steel & Aluminum (Front panel)
Dimensions: (WxHxD) With front panel: 472.1mmx370.6mmx115.9mm
Dimensions: (WxHxD) W/O front panel: 466.1mm*364.6mm*115.9 mm
Packing Dimension: 680 x 540 x 360 mm
NET weight:
Gross weight:
Open frame structure(optional)

LCD


Display Type : 17" SXGA TFT LCD
Resolution : 1280 x 1024
Max.color : 16M
Luminance : 300 cd/m2
View Angel : 160°(H) , 160°(V)
Pixel Pitch : 0.264 x 0.264 mm
Contrast Ratio : 700 : 1
Response Time : 8 ms
Power Consumption : 22 W
LCD MTBF : 50,000hrs

Touchscreen(optional)


Type: Analog resistive type : 25VDC = 20M O
Resolution: continuous
Light transmission: 80% or more
Controller: RS-232 interface( or USB option)
Power consumption:<5V &1mA
Surface hardness : 3H
Operating force : = 100g
Life expectancy : 1 Million

Storage


CF Socket ( optional )
Interchangeable slim optical drive (Right side)
2.5" ATA / SATA high Capacity HDD (horizontal)


Environmental


Operating temperature: 0 ? to 60 ? ( 32 ? ~ 140 ? )
Storage temperature:-20 ? to 80 ? (-68 ? ~ 176 ? )
Storage humidity: 10% to 90%non-condensing
Vibration: 17 to 500HZ 1G PTP
Shock: 1G /peak( 11m sec)
Front panel protection: meet nema4&IP65(IPPC)


Power Supply


INPUT: 115~230 VAC,50/60Hz
OUTPUT: ATX250W with PFC +5V& 12A , +12V& 10A
150W / 350W power supply ( optional )


Mounting


Wall-mount/Desktop stand/swing arm
Meets standard VESA (75/ 100mm ) mounting


Ordering Information

IPPC-1742-250X Industrial Panel PC with 17" TFT LCD with 250 W power supply.
IPPC-1742T-250X
Industrial Panel PC with 17" TFT LCD/Touch screen, with 25 0W power supply.
OPPC-1742-250X Open frame Industrial Panel PC with 17" TFT LCD and 25 0W power supply.
OPPC-1742T-250X Open frame Industrial Panel PC with 17" TFT LCD/Touch screen and 250 W power.
