Brand: ANNSO
Model: DPF-082
Min. Order: 20 PCS
Advertising LCD
Media Player
Advertising Player
LCD Advertising Media Player DPF-082 with 8 inches LCD,Size:Frame (W x Hx D)260 x 200 x 68.5 mm ,

Advertising Player, Advertising LCD,Media Player,Advertising display

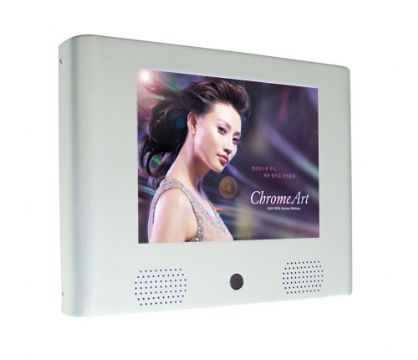

8 Inch LCD Advertising Media Player DPF-082


Specifications

Screen Size
Screen Size
8"

Display Type
VGA

Screen resolution (Pixels)
640*480

Brightness
380 nits

Contrast Ratio
250: 1

Pixel Size
0.2535*0.2535

Maximun Color
262K

Viewing angle ( L/R ,U/D )
65/65 ,65/55

Response Time
80 ms

Power Consumption
5Watts

Back light MTBF
10,000 hrs.

Compatible Memory Card
Compact Flash Type I/II (CF)
Yes

Secure Digital (SD) Card
Yes

Memory Stick (MS)
Yes

Multi Media Card (MMC)
Yes

USB Memory Sticker
Optional

Compatible File Format
JPEG
Yes

MP3
Yes

Motion JPEG (avi.)
Yes

MPEG-1
Yes

MPEG-2
Yes

MPEG-4 (D1 resolution)
Yes

Connectivity
USB
Optional

AV Input
Yes

AV Output
Yes

Audio Output
Yes

Features
Built in Speaker


Yes ( 2x 2w stereo speaker )

OSD Adjust switch Button
Yes

Automatic Slide Show
Yes

Music background
Yes

Language Support
8

Loop Zoom
Yes

File Name/Size/Data Display
Yes

Slide Show/Interval Setup
Yes

Designate folder and file type Play
Yes

Play/Pause/Stop/Volume/Mute
Yes

File Copy Function
only USB update version support

Memory card with Security Cover
Yes

Power Supply
internal ( 12V/3A 36 Watts )

Timer
Optional

Motion Sensor
Optional

DC in Power
7V-28V DC input

Accessories & Others
Remote Control
Yes

Audio Cable
Yes

AV Cable
Yes

Power Cable
Yes

Certificate
CE/FCC/ROHS

Warranty
One Year

Frame Material
Aluminum with Silver color painting

Dimension & Weight
Frame (W) x (H) x (D) mm
260 * 200 * 68.5 mm

Net Weight (kg)
2.83Kg

Gross Weight (kg)
3.92Kg

Packing Dimension (W) x (H) x (D) mm
340 * 290 * 190 mm



Ordering Information

DPF-082
8" LCD Digital Media player

DPFU-082
8" LCD Digital Media player , with USB update function
