Brand: King Pigeon
Model: S475
Price: USD 1 / 10
Min. Order: 1 10
wifi converter
rs485
rs485 to wifi converter

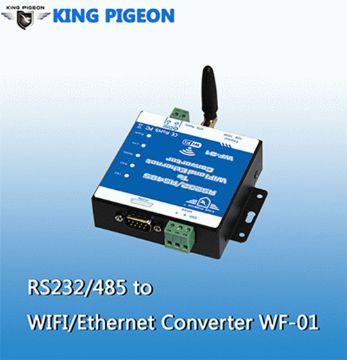

WF-01 is a wireless networking router, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking.
S475 provides a serial port to WIFI function, can be RS-232/485 converted into a TCP/IP serial network interface, RS-232/485 serial port and WIFI/ Ethernet bidirectional data transparent transmission.The serial device can transfer the data to TCP/IP network interface connect to the network for data communication, communication extended the range to serial device greatly!
1.Can use as a Router;
2.Support Hardware AP, HTTPD Client and WEB IO;
3.Suport TCPB Function;
4. Fast Access WiFi;
5.Support hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition;
6.RS232 RS485 automatic switching;
7.Support Webpage Configuration;
8.RJ45 network connection, support wired Ethernet transmission;
9.Rich status indicator light: Power/Ready/Link/RXD/TXD;
10. Reload button, do not worry incorrect settings(in working status, press the button 3s then it load to default settings and automatic restart);
11. Design with positioning hole, convenient installation;
12.Highest support baud rate 460800 bps;
13.Optional TCP Server/TCP Client/UDP Client/ UDP Server mode, the TCP Server mode can support up to 32 Client connection;
14.Multiple applications for data transmission from wired to wireless.
