Brand: 3A Rubber

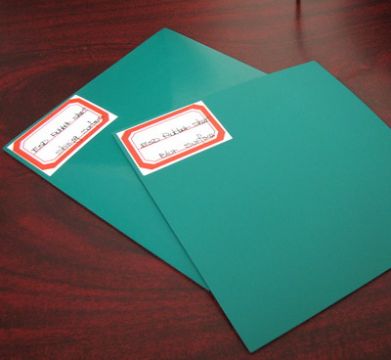

ESD Rubber Sheet
ESD Rubber
Rubber Sheet
Physical Character: ESD Rubber Sheet is a logogram of Electro-Static Discharge Rubber Sheet, and also call Antistatic Rubber Sheet. It is produced by nitrile - butadiene rubber (NBR), special prescription and produce technology with best performance of antistatic, moderate hardness and high tensile strength, No smell and good abrasion resistance, oil resistant and elasticity, working under the higher pressure status at the temperature of -35℃ ~ +100℃ in air. Apply for the industrial of electronic, textile, printing and dyeing and other place with same or higher request.

Material: NBR Rubber

Top: Shiny Smooth or Dull Gloss with Antistatic Resistance 107 - 109 ohm

Bottom: Smooth or Fabric Impression with Conducting Electrostatic Resistance 103 - 105 ohm

Attenuation Time of electrostatic pressure: 0.1S

Tensile Strength: 6-8Mpa

Hardness: 65+/-5Shore A

Elongation: 300%

Density: 1.4g/cm3

Attenuation Time of electrostatic pressure: 0.1S

Thickness: 2 - 3mm

Width: 0.5 - 1.2m

Length: 10 - 20m

***Allow and accept the antistatic silicone rubber sheet as following,

***Also call ESD Silicone Rubber Sheet,

***Material: 100% Silicone Rubber

***Color: Black

***Surface: Smooth/Fabric Impression

***Tensile Strength: not less 6Mpa

***Hardness: 50-60Shore A

***Elongation: 300%

***Density: 1.3g/cm3

***Top Resistance: 108 ohm

***Bottom Resistance: 103 - 105 ohm

***Thickness: 2 - 3mm

***Width: 1.0 or 1.2m

***Length: 10 - 20m
