Tower crane
Flat-top tower crane

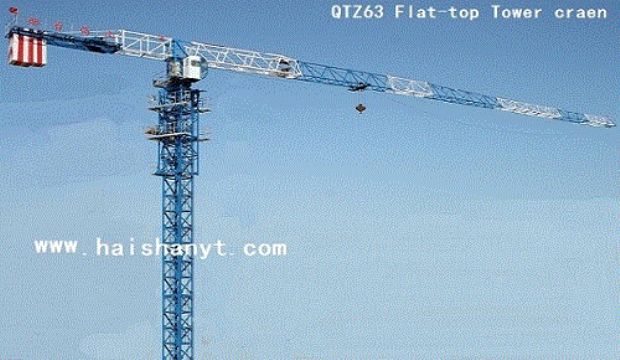

QTZ63 tower crane for flat level boom, car range, rotary hydraulic lifting crane. The biggest weight is 6 t; The maximum working range for 55 m. Two ratio of the maximum lifting moment for: 790 kn. M, four ratio of the maximum lifting moment for: 850 kn. M.
The machine features:
(1) performance parameters and technical indicators to achieve leading domestic and international advanced level, the maximum working range 55 meters, increased the speed of the work space.
(2) the appearance for the international popular form, beautiful and easy.
(3) working way, using a wide range. Have basic fixed, exterior wall attachment two ways of working, applicable to all kinds of different construction object; Independent lifting height and meters, adhere to an altitude of 151 meters.
(4) working speed is high, the speed control performance is good, stable and high efficiency.
Lifting mechanism using ordinary type and speed winding machine and single ratio gear reducer, can realize low speed heavy and light load high speed, maximum speed can reach sixty m/min.
Car luffing mechanism traction car in a horizontal arm range, has the good installation in position performance.
Slewing mechanism using winding machine and planetary gear reducer with hydraulic coupling, high bearing capacity, stable starting, reliable work, with wind in position function.
(5) all kinds of safety equipment is complete, can ensure the safe and reliable work.
(6) the driver room independent offset, vision, good for the operator to create a good working environment.
(7) use convenient maintenance is simple.
The machine weight (including weight, foundation, the attached device and electrical and mechanical parts and components) 33.8 t, a total installed capacity of 34.7 kW, widely used in high-rise hotel, residential and industrial buildings and other large construction project, the construction enterprise is an ideal construction machinery.

Technical performance table

Itemw Unit 2Fall 4Fall
Rated hoisting
moment Max.
range 55M kN.m 750 810
50M 770 830
45M 790 850
Work range m 3～55
Max.Lifting capacity t 3 6
Max.range Lifting capacity t 1.047 1
Hoisting height Basic m 40
Anchorage 151 75
The height (independent) 43.12
Crane jib end to the center of rotation 56.42
Balance arm tail to rotary center 12.34
Structure weight ( independent ) t 33.8
Ballast Max.range 55M 15
Max.range 50M 13.3
Max.range 45M 11.6
Motor total capacity kW 34.7
Allowable working temperature ℃ -20～+40
Working state of basic wind pressure Pa 250
Non operating state of basic wind pressure Pa 1100
Power parameters 50Hz ～380V±10%
Total motor power kW 34.7
Installation of operating speed m/s ≤12
Working wind speed m/s ≤20
Non operating condition of wind speed m/s ≤42
Allowable working temperature 0C -20～+40
Gotta work cycle 5×105
