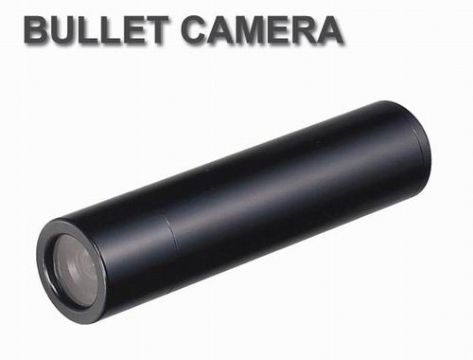

Brand: Global Electronics
Model: B7SC-300
Min. Order: 1 PCS
Button Cameras
5V CCD Cameras
SONY 5V CCD
(http://www.3g-gifts.com/class/class36.htm)
1.Image Device：1/3" SONY Super HAD CCD II
2.Scanning System:2:1 Interlace
3.H. Resolution:550 TVL
4.Effective Pixels NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V)
5.S/N Ratio:More than 45dB (AGC Off)
6.Min. Illumination:0.05 Lux / Faceplate
7.Sync. System Internal
8.Gamma correction = 0.45
9.Low Lux Sensitivity:0.05LUX/Face Plate
10.White Balance:Auto
11.Gain Control:Auto
12.Electronic Shutter NTSC:1/60-1/100,000 sec Auto; PAL:1/50-1/100,000 sec Auto
13.Video Output:Composite 1.0 [Vp-p]75Ω unbalanced
14.Power Comsumption: DC5V (±10%), Max. 200mA
15.Operating Temperature:14F-122F (-10℃-+50℃)
16.Storage Temperature:-4F -140F (-20℃-+60℃)
17.Dimensions (mm): Φ19 X 54.7
18.Weight:Approx. 83g
19.Lens:Fixed Board Lens / Pinhole Lens / Door View Lens
