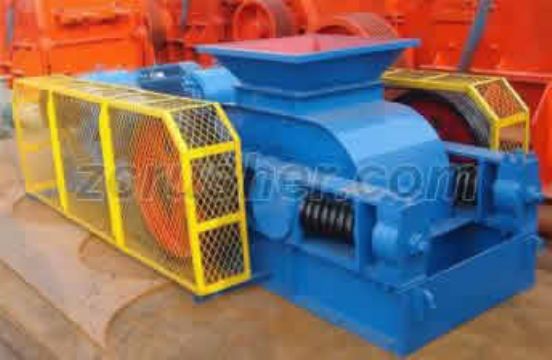

2Pg-610X400 Double Roll Crusher

2Pg-610X400 Double Roll Crusher

2Pg-610X400 Double Roll Crusher

Detailed Selling Lead Description
Brand: Fengde
Model: 50
Min. Order: 1
Double Roll Crusher
Crusher Machine
Crusher
http://www.zcrusher.com/double-roll-crusher.html

Description of Double roll crusher:
Double Roll crusher is mainly used for the crushing of medium or lower-hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, cement and building materials industrial production.Roll crushers have a theoretical maximum reduction ratio of 4:1. If a 2 inch particle is fed to the roll crusher the absolute smallest size one could expect from the crusher is 1/2 inch. Roll crushers will only crush material down to a minimum particle size of about 10 Mesh (2 mm). A roll crusher crushes using compression, with two rolls rotating about a shaft, towards the gap between the rolls. The gap between the rolls is set to the size of product desired, with the realization that the largest feed particle can only be 4 times the gap dimension. The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls.
