Brand: HSD
Model: Q61F
Min. Order: 1

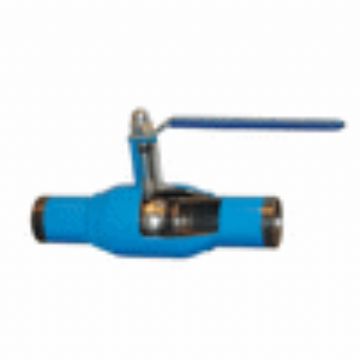

ball valve
welded ball valve
It's suitable in all neutral liquid or the gas medium pipeline makes the cut-off to use.the main use includes city coal gas, natural gas, transmission pipeline, district connection heating,water supply and petrochemical,electrical station, food industry, paper making ETC..
Nominal diameter: DN15MM-80MM (1/2"-32")
Nominal pressure: PN1.6Mpa-10Mpa(ANSI class 150-600)
The screw thread ends, the flange ends, the butt welding ends

Type:H113/112
Size:DN150-DN300 PressurePN25
Material:
Body:Carbon steel,EN 10217-2 P235GH (1.0345)
Ball:Stainless steel, EN×5CrNi18-10(1.4301)
Stem: Stainless steel, EN×8CrNiS18-9(1.4305)
Sealing ring: PTFE+C
Drive:Painted carbon steel gearbox
Temp.:-29°C-+200°C
