Brand: NAIS
Model: TX2-3V
Min. Order: 1000
TX2-3
TX2
NAIS

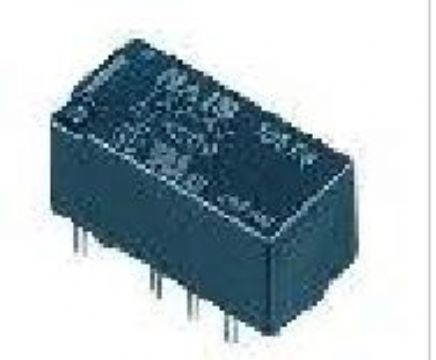

Matsushita relay TX2-3V original new goods.
Product Description: new original authentic ROSH Certification (environmental)
Brand: Panasonic
Type: signal relay series: TX series models: TX2-3V
Dimensions (mm): 14.0 × 9.0 × 5.0mm (L × W × H) Weight: 2g
Contact parameters:
Contact form: 2C (DPDT)
Contact load: 2A30VDC, impedance: ≤ 50 m Ω Current Rating: 2A
Electrical life: ≥ 10万machinery back to life: ≥ 1亿back
Coil parameters: resistance (with 10%): 64.3 Ω coil power: 140 mW rated voltage: DC 3V absorption of voltage: DC 2.25V voltage release: DC 0.3V operating temperature: -40 ℃ ~ +85 ℃ insulation resistance: ≥ 1000M Ω coil and contacts between the pressure: 1000 VAC / 1分钟contacts and contacts between the pressure: 1000 VAC / 1分钟

Specific models: TX2-3V, TX2-4.5V, TX2-5V, TX2-12V, TX2-24V, TX2-L-3V, TX2-L-5V, TX2-L-12V, TX2-L-24V, TX2 - L2-3V, TX2-L2-5V, TX2-L2-12V, TX2-L2-24V, TX2SA-3V, TX2SA-5V, TX2SA-12V, TX2SA-24V, TX2SL-3V, TX2SL-5V, TX2SL-12V, TX2SL-24V, TX2SS-3V, TX2SS-5V, TX2SS-12V, TX2SS-24V, TX2SA-L-3V, TX2SA-L-5V, TX2SA-L-12V, TX2SA-L-24V, TX2SL-L-3V, TX2SL-L-5V, TX2SL-L-12V, TX2SL-L-24V, TX2SS-L-3V, TX2SS-L-5V, TX2SS-L-12V, TX2SS-L-24V
