Brand: HL
Model: HL-300
Min. Order: 1
shielding machine
spiral shielding machine
fine wire shielding machine

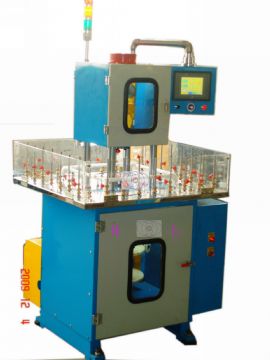

HL-300mm ( PLC ) Fine Wire Spiral Shielding Machine



Application:

Shielding fine wire for computer,mobile-phone,television,video-recorder,Hi-Fi system,electrical

circuit.


Main Technic Spec:

Machine model: HL-300mm.

Insulation wire: 0.15mm-1.0mm PVC/PE/PEF ect.

Copper wire: 0.025mm-0.06mm.

Shielding Pitch: 2.0m-10.0mm.

Pitch Change: Change gear to adjust and computer display the parameter.

Main Axis Speed: Max 1100rpm.

Tranverse: Crossing and crescent traverse unit to drive.

Power: 3 phase, 380V, 50HZ.

Motor: 1.5KW/2HP ( AC motor with inverter speed adjustment ).

Control System: PLC &HMI control.

Tension control: Adopt the magnetic powder cluth control the tension, and computer automatic monitoring it.

Brake: The machine will stop automatically if any wire outside of the machine breakage.

Turning: Either left or right at will.

Bearing: International brand.

Take-up Bobbin: 300mm

Coating: NO.2 Apple green or blue.
