Brand: JP
Model: PHQ-300
Price: USD 2000 / set
Min. Order: 1 set set

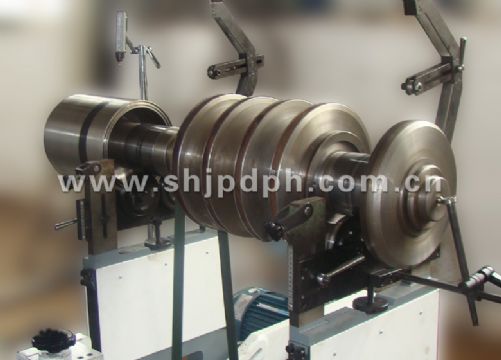

Balancing Machine
Pump Balancing Machine
Impeller Balancing Machine
Pump Impeller Balancing Machine
Widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, pump impeller, rotor, textile machinery, fans, shaft, etc. Driven by belt, it is simple to load and unload, quick to start and with high precision and low failure rate.

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Specifications Parameters
Max Mass of Workpiece (kg) 300
Max Diameter of Workpiece (mm) 1200
Distance between Two Support Bearings (mm) 160--1500
Journal Diameter Scope of Workpiece (mm) 20~180
Diameter Scope of Driving Belt (mm) 40~400
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) 798/1274/1596/2548
Motor Power (kw) 1.3/1.8
Min Achievable Residual Unbalance Amount (emar) 0.5g mm/kg
