Brand: JP
Model: PHQ-160
Price: USD 2000 / set
Min. Order: 1 set set
Balancing Machine
Roller Balancing Machine
Rubber Roller Balancing Machine

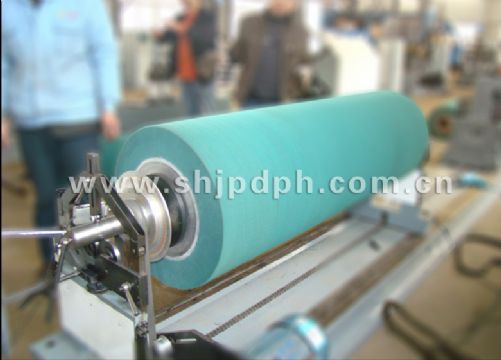

Rubber Roller Balancing Machine(PHQ-160)
This balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, roller,textile machinery, fans,shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.


Specifications Parameters
Max Mass of Workpiece (kg) 160
Max Diameter of Workpiece (mm) 1000
Distance between Two Support Bearings (mm) 150--1200
Journal Diameter Scope of Workpiece (mm) 10~140
Diameter Scope of Driving Belt (mm) 30~350
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) 798/1274/1596/2548
Motor Power (kw) 1.3/1.8
Min Achievable Residual Unbalance Amount (emar) 0.5g mm/kg
