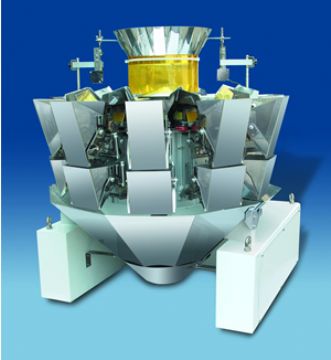

food ration packing equipment
Application scale:
Potato slice and chip, raisin, oatmeal, candy, peanut, walnut kernel, apricot kernel, popped food, sugar, jelly, frozen dumpling, meatball, crude drugs, gourmet powder, salt, solid beverage etc.
With excellent compatibility and easy using with other packing equipments.
With stable 10-bucket structure, to choose the best combination instantaneously from abundant weight combinations by computer.
With instantaneous reaching of correct calculating by high-precision load cell.
With 11 languages to choose and LCD screen
The open & close speed of the material dipper cover can be finely regulated according to the features of the measured material to prevent crashing and damage

All the parts touching the material are made by stainless steel, neatness and hygiene.
Measuring method: load cell
Way of drive: Driven by step motor
Form of bucket: Double-row non-memory buckets
Preset function: Max50choices, easy to keep your products and weight data for future use.
Optional purchasing parts: collection bucket, dimpled/flat bucket, vibration part water proof.
Net weight: 270kg, gross weight: 360kg
Packing size: 108X108X88cm, 104X73X91cm




　　　　　　　　 　　　 Technical:
Each dump weighing range 8-1000g
Combination capacity Max 3000ml
Highest speed 60 bags/min
Length of material Max 80mm
Each bag error 0.2-0.5g
Weighing accuracy 0.1-1g
Mode of driving Load cell
Form of dipper Double-row non-memory dippers
Preset function Max 50 choices
Material The part contacting materials is made of stainless steel
Level control Photoelectricity(pass type)
Power source Ac200/220V±10% 1.5KVA
Dimension 950(L) * 950(W) *1000(H)mm
