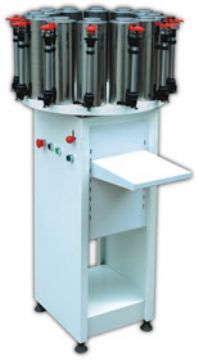

Ht-20B3 Manual Paint Dispenser

Ht-20B3 Manual Paint Dispenser

Ht-20B3 Manual Paint Dispenser

Detailed Selling Lead Description
Brand: high-tech
Model: HT-20B3
Min. Order: 1
Manual paint dispenser
stainless steel
Technical data:
Application: Water or oil colorant (1-16 types)
Maximum high of can: 350mm
Metering pumps are made from stainless steel and suitable for all kinds of colorant types.
Drum capacity: 2.3 L or 1.75L (with 14,16, 20, 24 cans is optional)
Maximum discharge rate: 2 fluid ounces (1Y=29.568ml)
Accuracy: 1/192 and 1/384 fluid ounces is optional
Working power: 220V Frequency: 50/60 HZ
Power supply: 40W Net weight: 80kg Gross weight: 120kg
Case size: 1350(H) x 860(W) x 860(D)
Packing size: 1200(H) x 580(W) x 580(D)mm—main case
540 (H) x 1000(W) x1000(D)mm--canisters

Container loading:40sets/20` 81sets/40 `GP 88sets/40`HQ
Features of KD-20B3:
Double-pump and double-gauge lock ensures stability of accuracy and repeatability.
Automatic blending of rotating blades ensures equal distribution of colorant and has no deposition.
Colorant tray that can automatically rotate fix brings ore convenience for operators.
Manual control interior case support may be moved up and down easily, which provides enough space for paint dispensing of different sizes of drums.
