SlimLine Light Boxes
Fully portable, ‘All in One’ compact design

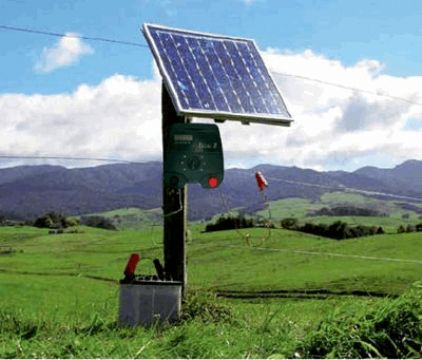

The light, compact design with carry handle makes it ideal for portability. The unit includes internal battery and solar panel, providing a convenient all‑in‑one energizer.
Solar powered
Energy efficient solar panel charges the internal battery to power the fence line.
Internal rechargeable battery
Solar power recharges the battery as required to support long battery life.
Flashing red light
Indicates at a glance that the energizer is working and powering the fence.
Battery*
Battery saving mode maximizes battery life.
Low impedance energizer
Designed to deliver power to the end of the fence even under heavy load e.g. foliage, undergrowth.

Specifications as following:

1. input voltage: 12V DC2. output voltage: 12kv
3. pulse width: 100us(1/1000 second)
4. switch to 1.5s or 2.5s mode freely
5. automatic switch between day mode and night mode
6. transformer change the range of voltage:110~240v ac
7. powered by lead-acid battery and solar panel
8. six operation mode
9. Theory water-proof and anti-dust
10.working length:200m to 40000m
11.store energy 2.7 joules
12.max output energy: 2 joules
13.The output voltage for 500 Ohms :7.9KV


SIX MODES:
ON HOLD MODE:
The green led indicator is on and other, off; Lcd shows the battery
voltage and right number is 00.0. Under hold-on mode, the energizer does not generate puls

STANDARD MODE:
The energizer generates pulse periodically and the interval is 1.5 second. The green led indicator is on and all red led indicators are on; the right number shows the actual output voltage.

POWER CONSERVATION MODE:
Energiser generates pulse periodically and the interval is 2.5 second. The green led indicator is on and all red led indicators are on; the right number shows the actual output voltage.

BATTERY & SOLAR MODE
The energizer generates pulse each 2.5 seconds. The green led indicator is on and red led indicators are on. The voltage of battery is not less than 11.8v. As battery voltage decreases the number of indicator lights will reduce to indicate battery power remaining. When battery is running out, all the indicators will be off and energizer will cease to function.

DAY/NIGHT MODE
Energiser pulses at 1.5 second intervals during daylight hours and 2.5 seconds mode at night. Sensor detects it is day or night and then switchs to appropriate output mode.

REVERSE DAY/NIGHT MODE
Energiser pulses at 2.5 second intervals during daylight hours and 1.5 seconds mode at night. Sensor detects it is day or night and then switchs to appropriate output mode.

The electric fence energiser is able to operate of any 12V supply. The starter package INCLUDES a 240/12V adapter so the energiser is ready for immediate "out of the box" use but the energiser can also be run directly of a 12V battery and becomes totally mains independent when a solar charger is added to keep the battery charged
