Brand: LKs
Model: msr605

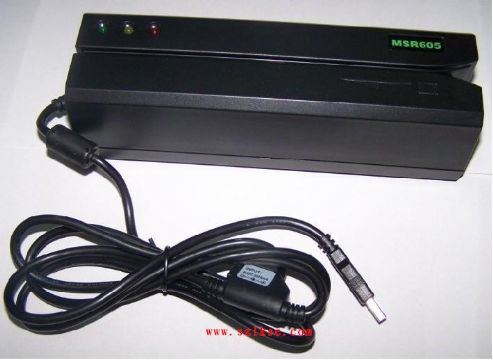

MSR605
MSR606
MSR609
MSR606/MSR605 Magnetic Reader/Writer,MSR400,MSR
MSR606/MSR605 Magnetic Reader/Writer is Good Quality and 100% Compatible with MSR206,MSR505 Magnetic Reader/Writer .
What MSR206,MSR505 Magnetic Reader/Writer can do MSR605 Magnetic Reader can do.
MSR605/MSR606 Magnetic Reader is ideal for access control time keeping banking ID recognition & credit verification and related applications. In fact
wherever a magnetic stripe ID or transaction card is used one can find a related use for the versatile user-friendly MSR605 reader/writer.
MSR605/MSR606 Magnetic Reader/ MSR605/MSR606 Magnetic writer Specification:
* Reading/Writing magnetic stripe card complied with ISO formats
* Reading/Writing Drivers Licenses (Cool New!)
* Read/Write High & Low Coercive (300~4000Oe)
* High/Low Coercivity encoding circuitry selectable on screen
* Program software for Windows 98/Me/XP/Vista
* Programming software for various read/write performance
* Can be use directly with Mini123ex etc
* Pure USB directly
* +24VDC 2.5A Max external power adapter attached Smaller than others
* Dimensions Smaller than others
* Exeba software support
Dimensions of Box 290(L) x 180(W) x 100(H) mm
Electrical
Power requirements +24VDC +/- 5%
Consumption Typical 350mA Max. 600mA plus for each writing track
Power supply External switching power 24V/2.5A
Communication Standard RS232 or USB with USB-to-RS232
Ripple 50mVp-p or less
Dielectric strength 500 VDC for 1 minute
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Coercive force Read/write 300-4000 oe Mag.card
Card thickness 0.76-1.2mm
Read speed STD card Jitter +/-15% Amp. 60%
5-55ips 5-50ips 5-50ips
Write speed 5-30ips
Write jitter Interval < +/- 10% Sub-interval < +/- 12%
Error rate Read < 0.5% Write < 0.8%
Head life Min. 1000K swipes for both read/write head
Rate
CE FCC ULCUL
More introduction and photoes about MSR605/MSR606 Magnetic Reader,MSR400,MINI123,MINIDX3,MINIDX4,MINI400,MSR500,MSR600 or so,please send email to us or click our company website. Or you can buy it directly on our company Aliexpress store- http://www.aliexpress.com/fm-store/700424
