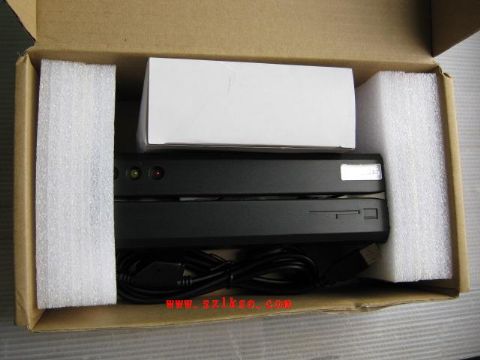

MSR206,MSR505,MSR605 3 track,HI/LO Magnetic reader/writer,data collecter
MSR605 Magnetic reader/writer is High quality and 100% Compatible with MSR206,MSR505 .What 206 can do, MSR605 data collecter can do.
It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact,
wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer.
Specification
* Reading/Writing magnetic stripe card complied with ISO formats
* Reading/Writing Drivers Licenses (Cool New!)
* Read/Write High & Low Coercive (300~4000Oe)
* High/Low Coercivity encoding circuitry selectable on screen
* Program software for Windows 98/Me/XP/Vista
* Programming software for various read/write performance
* Can be use directly with Mini123ex etc
* Pure USB directly
* +24VDC, 2.5A Max external power adapter attached ,Smaller than others
* Dimensions Smaller than others
* Exeba software support
Dimensions of Box 290(L) x 180(W) x 100(H) mm
Electrical
Power requirements +24VDC +/- 5%
Consumption Typical 350mA Max. 600mA plus for each writing track
Power supply External switching power 24V/2.5A
Communication Standard RS232 or USB with USB-to-RS232
Ripple 50mVp-p or less
Dielectric strength 500 VDC for 1 minute
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Coercive force Read/write 300-4000 oe Mag.card
Card thickness 0.76-1.2mm
Read speed STD card Jitter +/-15% Amp. 60%
5-55ips 5-50ips 5-50ips
Write speed 5-30ips
Write jitter Interval < +/- 10%, Sub-interval < +/- 12%
Error rate Read < 0.5% Write < 0.8%
Head life Min. 1000K swipes for both read/write head
Rate
CE ,FCC, UL,CUL
