MINI123
MINIDX3
MINI CARD READER

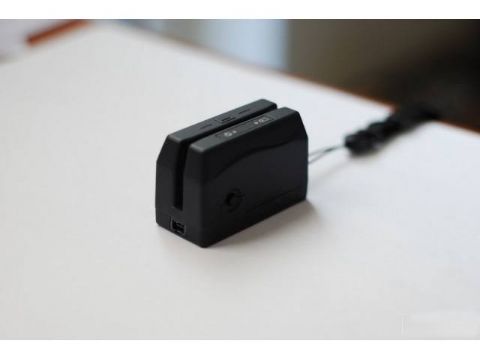

MiniDX3 Portable Reader Collector
ShenZhen LIKES Electronic CO LTD specilly supply Swipe Reader/writer,Magnetic card reader/writer,Hi-co&lo-co Magnetic card reader/writer,Magstripe reader,Manual swipe reader,Magnetic Card Reader/Writer, MSR, data collector,and so on.
ShenZhen LIKES Electronic CO LTD is a high-tech group Company major in developing, producing and selling products with automatically identifying function and supply system integration.We are an Excellent expert on many card devices. We have the Professional product development team and modern manufactory at Shenzhen of China
We look forward to working with you to provide you with more whole, better products.
mini magcard reader-writer,MINI Magnetic Card Reader,MINI reader-writer,MINI 123,miniDX3,Portable Reader CollectorSmallest, 40mm Portable Magstripe card Reader,MINIDX3 introduction:
reader Smallest in the world
Applications
Any movable data collection (Trade shows Racing events)
Point of sales (Credit card data collection)
Attendance (Student ID Membership card)
Law enforcement (DMV card)
Specification
512 K bytes memory for storing 3000 records of data
3-track version can collect all three tracks data
Time stamp shows date and time with every transaction
Password Protection defends user
Auto Power Off is set by user
Transfer data to MSR206 and MSR606 directly
Data downloadable to the computer via USB
Bi - Directional
Battery powered and low battery indicated
Read ISO format and special format are available upon request
No programming required easy to use as 1- 2- 3
Dimensions L 1.6 x W 0.8 x H 1.2 inch ( L 4.7 x W 2.2 x H 3.1 cm )
Box Dimension L 16.5 cm * W 11.5 cm * H 8cm
Net Weight 1.2 oz
Electrical
Battery Power 3.7v 220 mAH Rechargeable Battery
Working Temp 0~55 Deg. C
Humidity 10~90% Relative
Storage Temp -10~55 Deg C
Communication Standard USB
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Time stamp
Date: YY/MM/DD ( 2007/03/15 => Mar. 15 2007 )
Time: HH:MM:SS (19:08:35 => 7:08:35pm)
Week: Sun.=>1 Mon.=>2 Tue.=>3 Wed.=>4
Thurs.=>5 Fri.=>6 Sat.=>7
Example: 2002/04/12 19:08:35 6 =>
April 12 2002 7:08:35pm Friday
Coercive force Read 300-4000 oe Mag.card
Card thickness 0.76-1.2mm
Read Speed Card speed through the unit may vary from 3 ~50 ips
Error rate Read < 0.5% Write < 0.8%
Head life Min. 1000K swipes for both read/write head
Rate
CE FCC Rohs
China ShenZhen LIKES Electronic CO LTD
Aliexpress store website :http://www.aliexpress.com/fm-store/700424
Trademanager Id: cn110863949
Tel:+86-755- 86642499
E-mail: likes02@yahoo.com
yahoo: likes02@yahoo.com
contact name:Susan Lv
Company address: No.18,North of Makan industrial Park,Xili Town,Nanshan District,518055,Shenzhen,China.
